State background

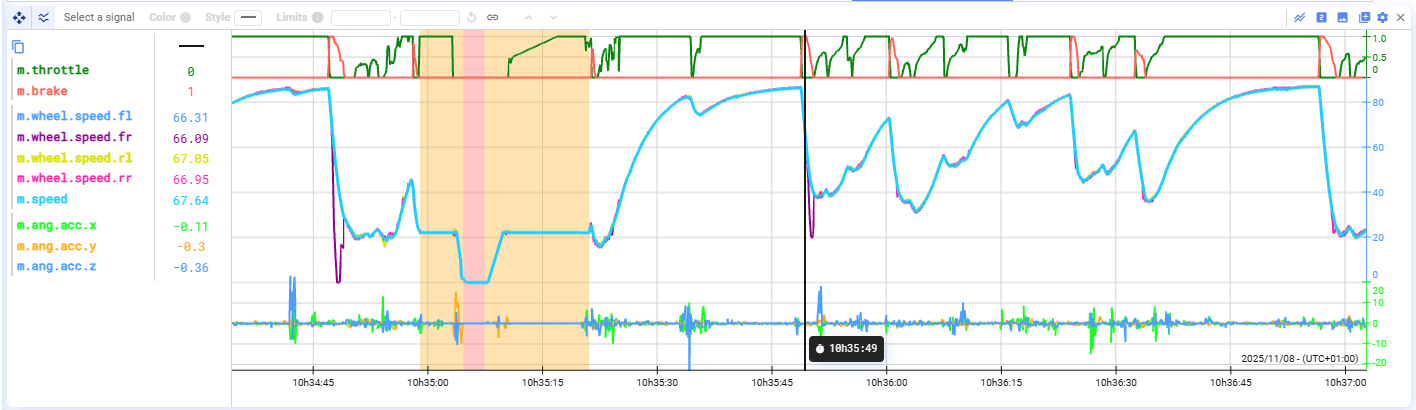

Conditional background colors in time series
You can color the background of a time series plot based on the state or value of another signal.

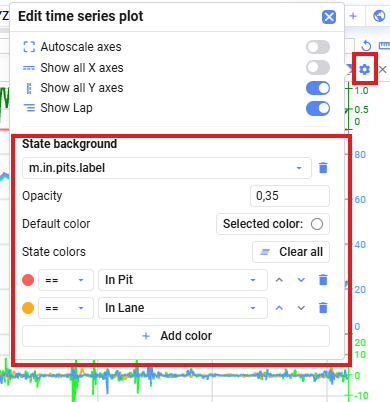

To configure background coloring:
Open the plot settings of your time series plot.
Drag or select a signal and add it to the State background section.
Define which states or values should correspond to which background colors.
The rules are applied from top to bottom—the background is colored according to the first matching rule.
