Add Data Sets

Add data to empty project

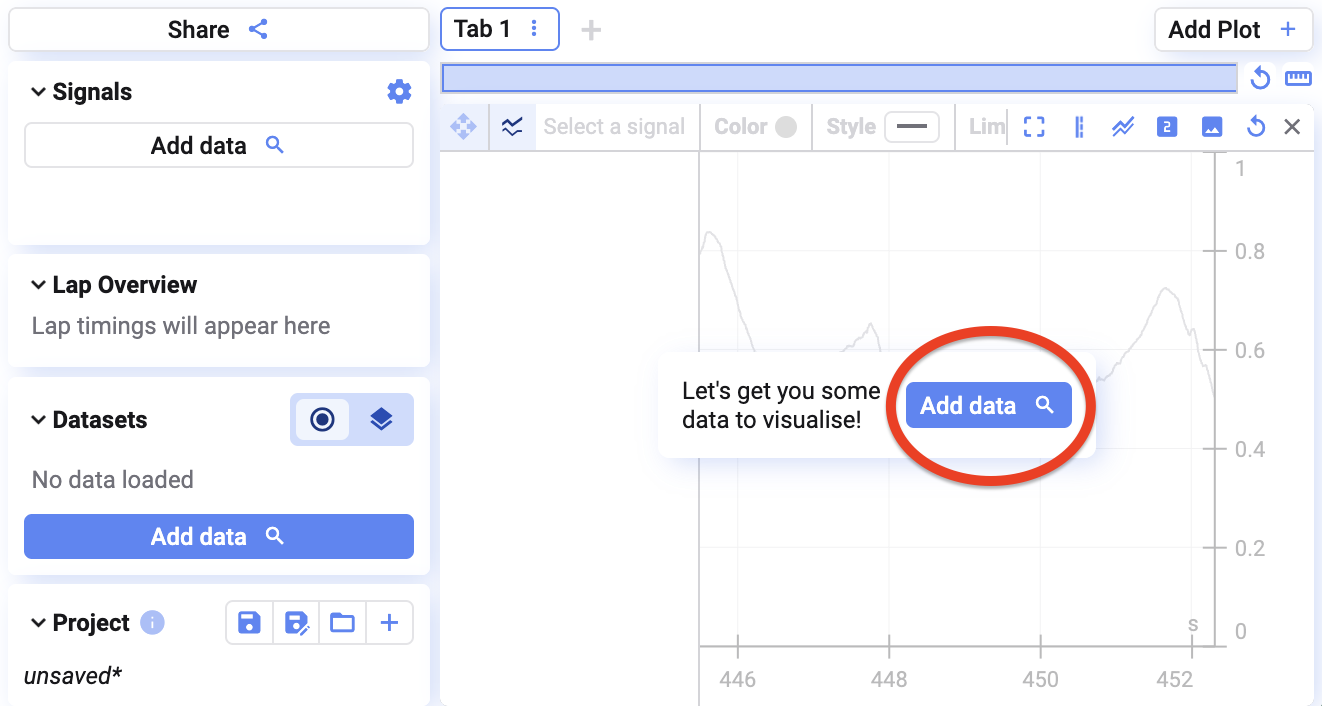

If you have no data loaded yet, click on the Add data button that appears on your screen.

Next find and select data in the data list as described in Selecting data.

Add additional data

If data has already been loaded to your project, you will not see the 'add data' button. To add data to your project:

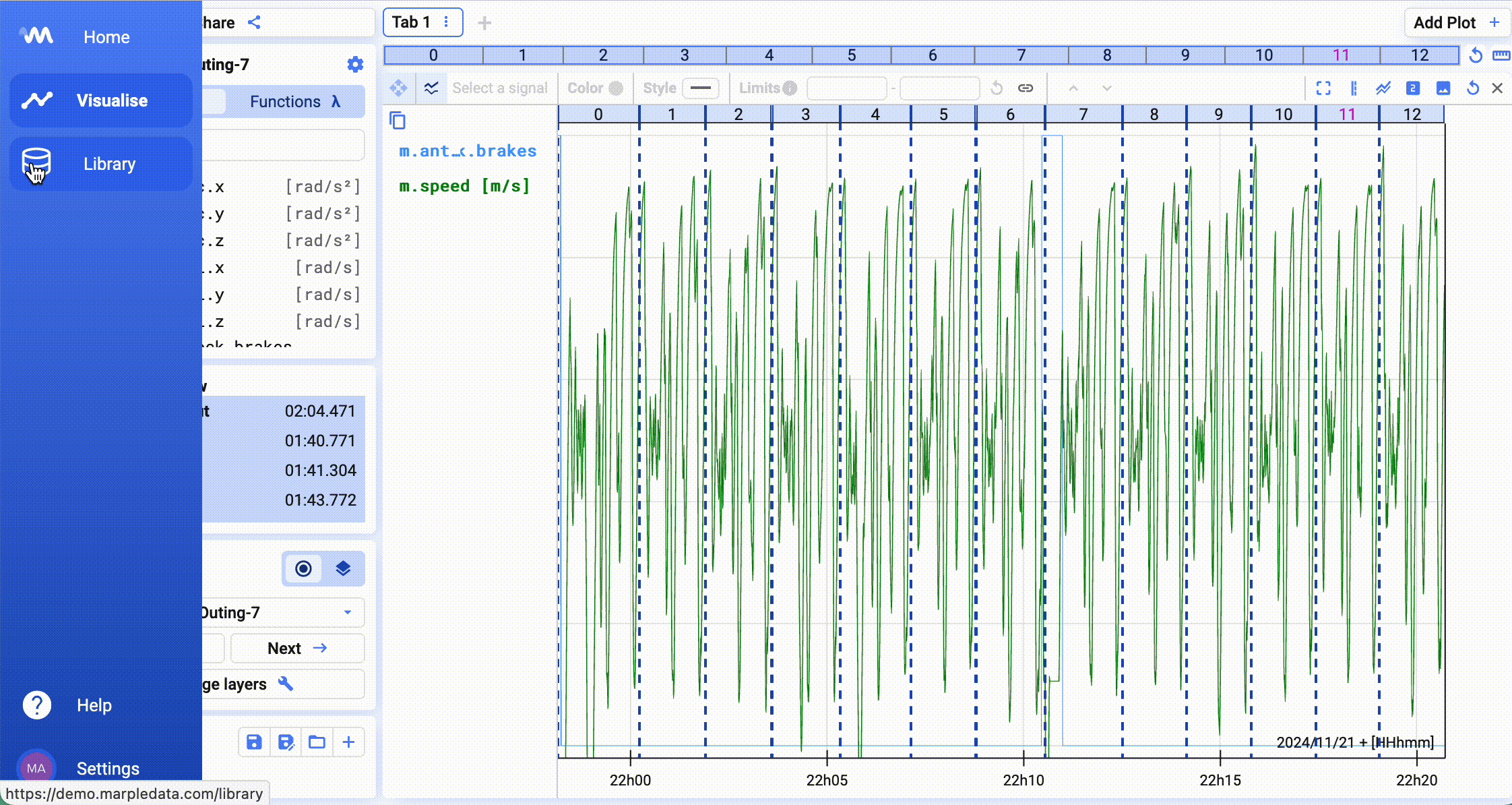

1. Go to the data library;

2. Find and select the data you would like to load;

3. Click on Visualise in the bottom right corner of the screen.

Switch between datasets

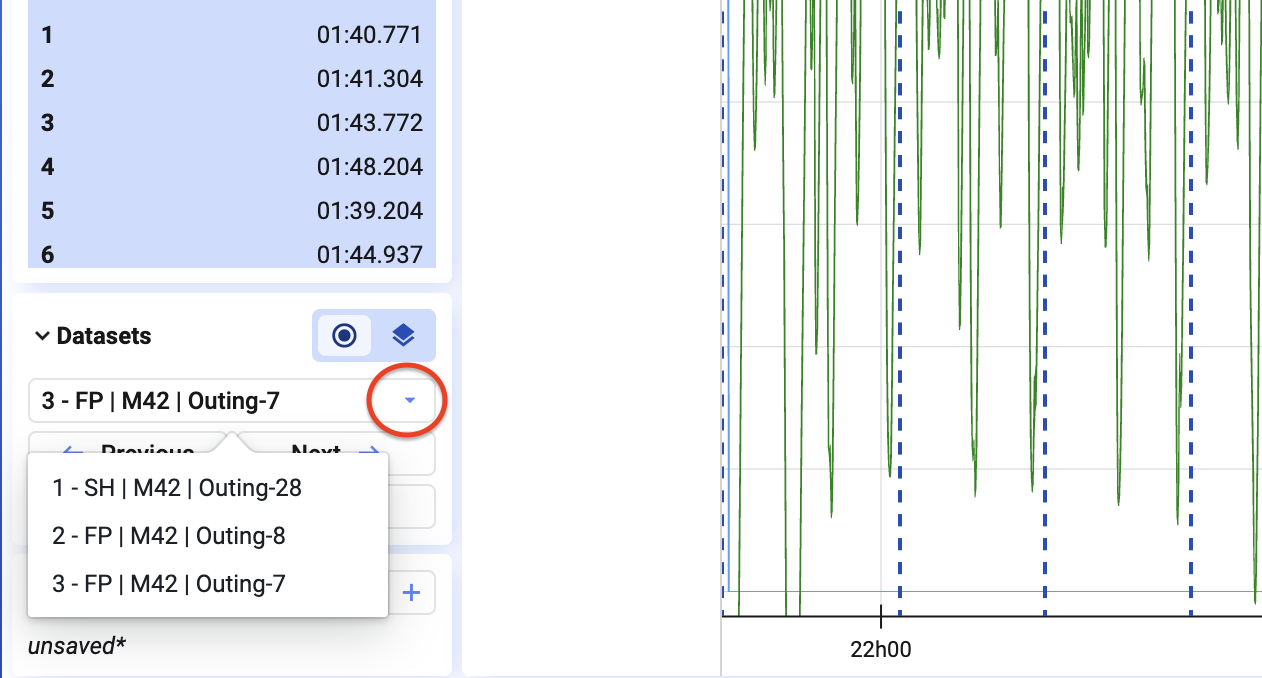

In the bottom left of your screen, you see which data is currently loaded to the plots. By clicking on the dropdown list, you can select a different dataset.

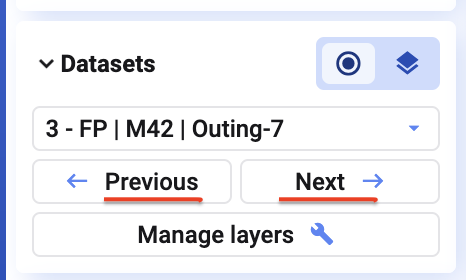

You can also use the left and right arrows in the modal to switch between the various datasets.

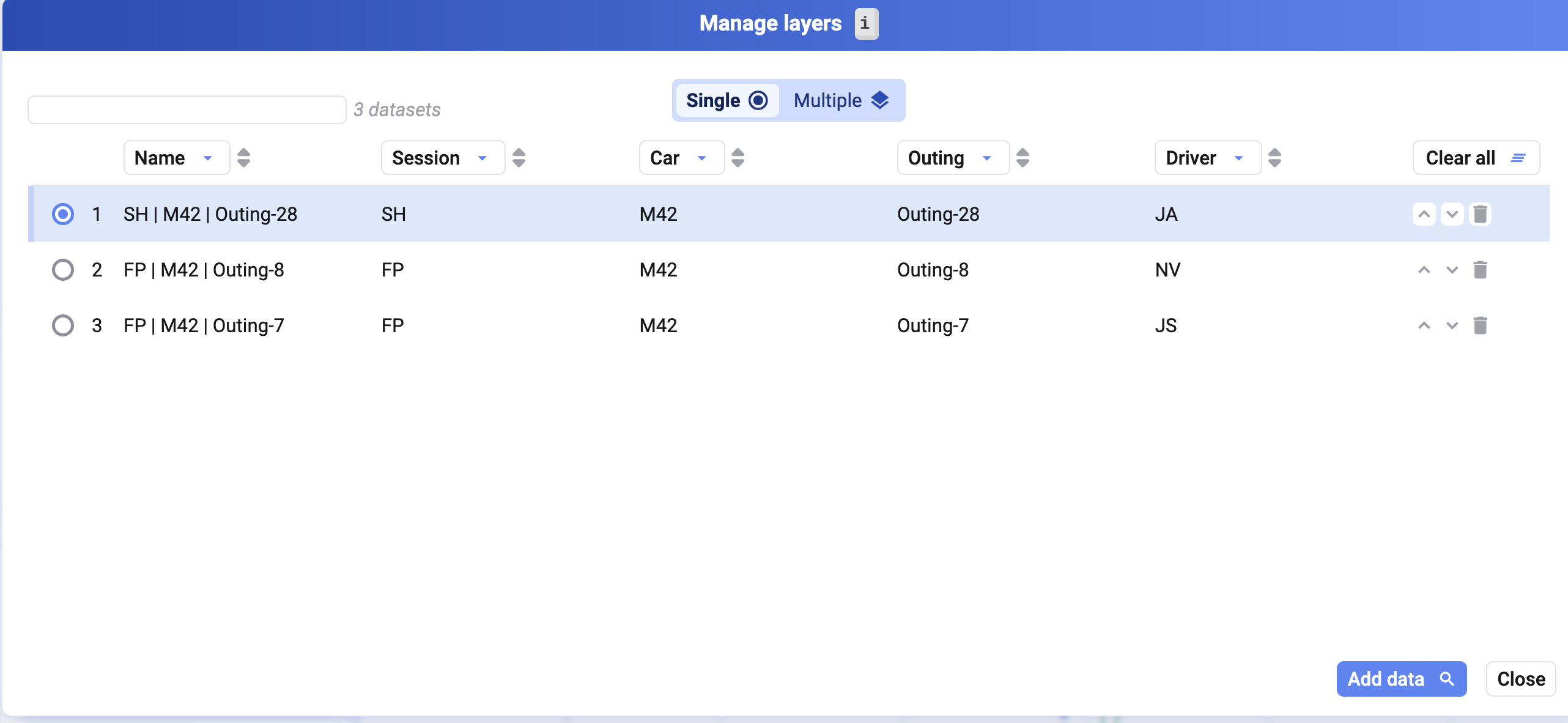

If you click on Manage layers, you also get a nice overview of which layers have been loaded to the project. You can also click the key i to open the Manage layers dialoge.

From this dialog, you can:

1. Select the dataset you would like to visualise;

2. Change the order of the datasets;

3. Add more data; or

4. Remove a dataset you have loaded.

Remove dataset
