Text data

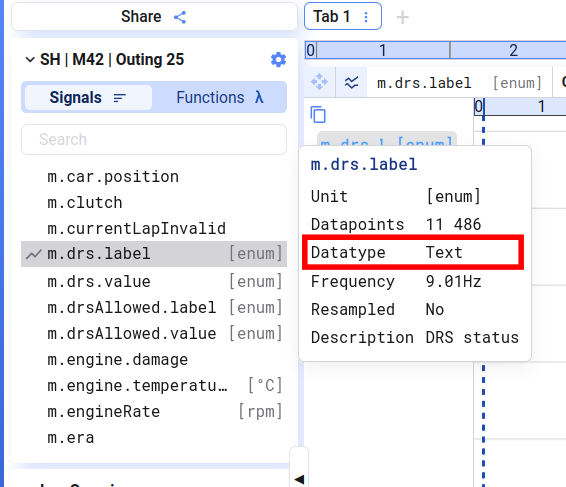

You can recognize text signals by their Text datatype.

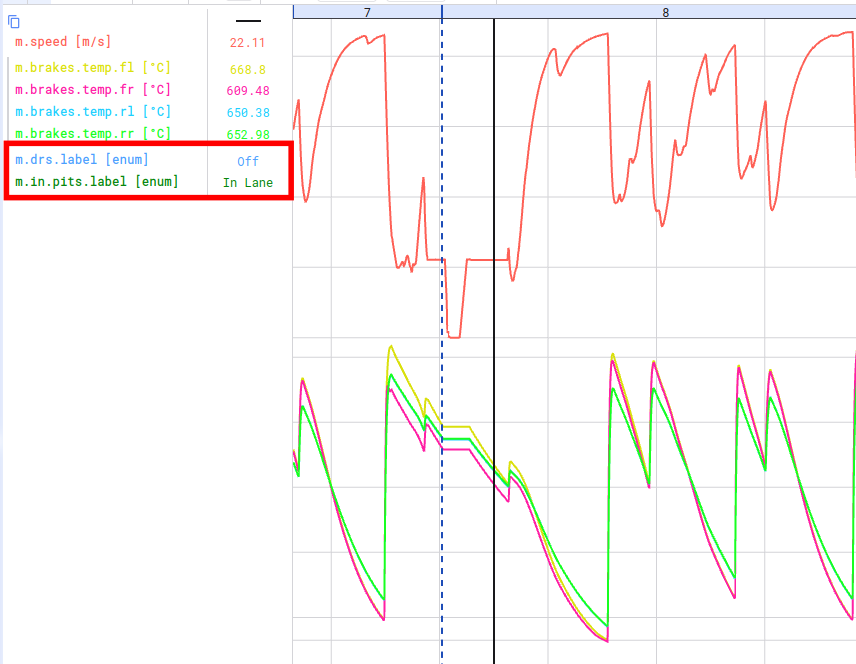

Text signals can be added to time series plots. They will not show up as an extra line on the plot but their value at the cursor is displayed along with the other cursor values.

Converting between Number and Text signals

If you want to visualize how the text signal evolves over time, you can create a function to convert the different text values to numbers and plot this function. Similar formulas can be used to create a text signal from a discrete numeric signal. Depending on you database type, this function will look different.

This are some example functions on how to convert a discrete gear signal to a text signal directionwhich indicates the driving direction:

ADX

Text to Number

iff([[direction]] == 'Reverse', -1,
iff([[direction]] == 'Neutral', 0, 1)

Number to Text

iff([[m.gear]] == 0, 'Reverse',
iff([[m.gear]] == 1, 'Neutral', 'Forward'))

PostgreSQL / TimescaleDB

Text to Number

CASE
    WHEN [[direction]] = 'Reverse' THEN -1
    WHEN [[direction]] = 'Neutral' THEN 0
    ELSE 1
END

Number to Text

CASE
    WHEN ([[gear]]::int) = 0 THEN 'Reverse'
    WHEN ([[gear]]::int) = 1 THEN 'Neutral'
    ELSE 'Forward'
END
