Beyond collaborating within a project, you can also share analysis in Marple Insight through share links.

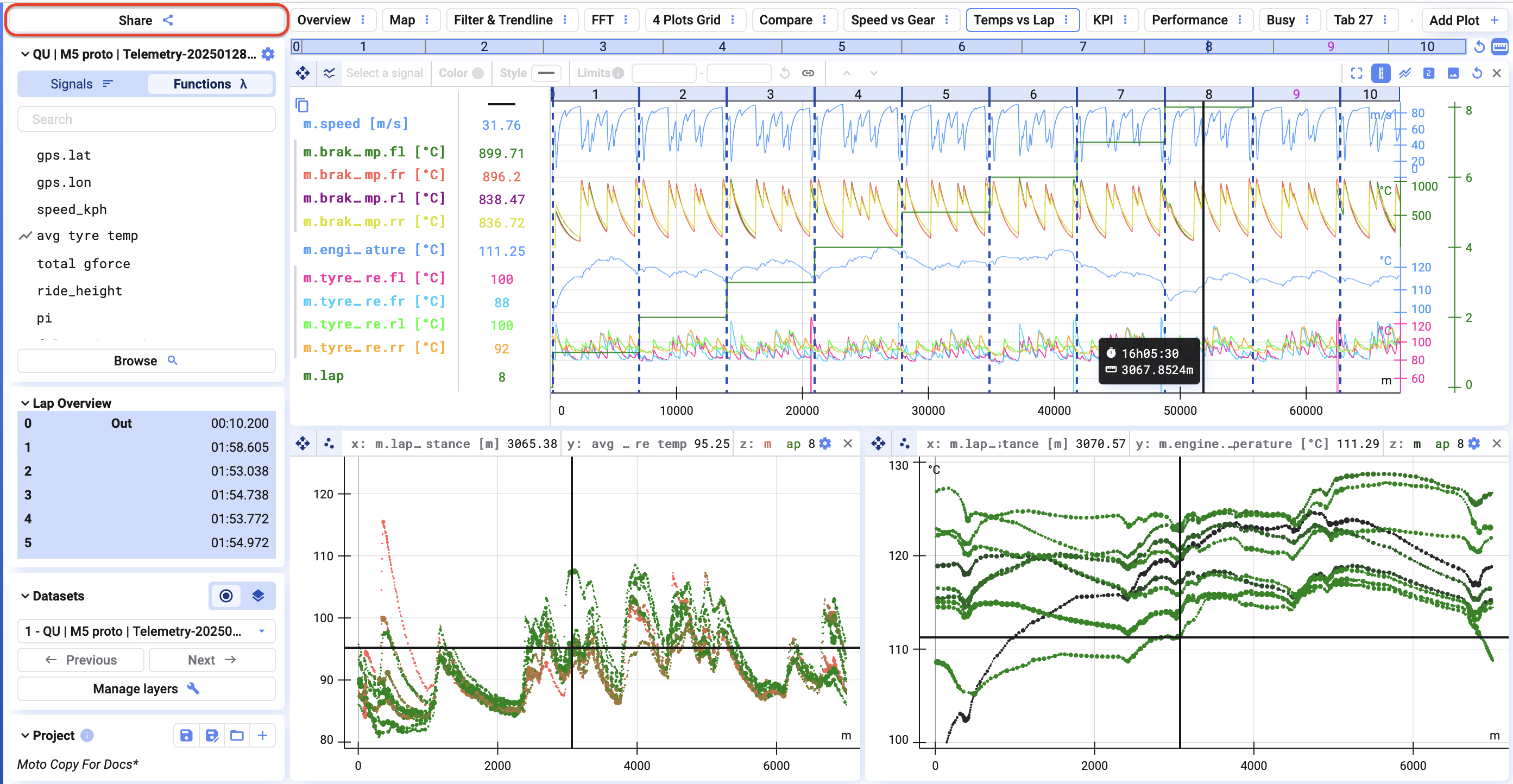

Share links let you easily share the visualization you have created. To generate a sharing link, click the share button located at the top left of the visualization tab, which will open the share link dialog.
Share links are by default protected.
A protected sharing link allows you to share your current visualization view with colleagues within the same workspace. Users in your workspace can freely explore, scroll, and add new signals.
Do note that the share link that you generate is only accessible to members of your workspace and cannot be viewed by external users.
A public sharing link lets you share your visualization with individuals outside your workspace, even those without a Marple account.
However, viewers will have limited access. This means that only the current tab will be visible, adding other signals or viewing signals in your project is restricted. Also modifying or adding plots is not permitted.
Zooming and adding a cursor are allowed.
Sharelinks can also be created dynamically.
You just need:
your url to marple, for instance f1.marpledata.com
to mark it as a dynamic share link, add /visualisation?share=dynamic
Add a project name after &project=, for instance: &project=testruns20250115. To open the last used project, add &project=lastused)
Optional: add any of the metadata in the format &{{replace-with-metadata-label}}={{replace-with-metadata-value}} for instance &outingId=123-456-789&segment=abcd123
Optional: add the timestamps in the format ×tampStart=1728978510×tampStop=12728978520
An example of a dynanimc sharelink could be:
https://f1.marpledata.com/visualisation?share=dynamic&project=testruns20250115&outingId=123-456-789×tampStart=1728978510×tampStop=12728978520
